Plastics in Injection Molding
A comprehensive guide to the materials that power the injection molding of plastics industry
Plastics are synthetic materials made from polymers that can be molded into various shapes, making them ideal for the injection molding of plastics. Their unique properties have revolutionized manufacturing across countless industries. Understanding these properties is essential for selecting the right material in injection molding of plastics processes.
Key Characteristics
- Durability: Most plastics resist corrosion and degradation, maintaining integrity in various environments, a crucial factor in injection molding of plastics applications.
- Lightweight: Plastics have low specific gravity compared to metals, reducing weight in finished products created through injection molding of plastics.
- Versatility: Can be formulated with various additives to achieve specific properties needed for different injection molding of plastics applications.
- Insulation: Excellent electrical and thermal insulators, making them valuable in electronic components produced via injection molding of plastics.
- Cost-effectiveness: Generally lower production and processing costs compared to metals, contributing to the efficiency of injection molding of plastics.
- Recyclability: Many plastics can be recycled, supporting sustainable practices in injection molding of plastics.
Mechanical Properties
Comparative mechanical properties of common plastic groups used in injection molding
Thermal Properties
Thermal behavior is critical in injection molding of plastics as it determines processing parameters and end-use applications. Key thermal properties include:
Melting Point
The temperature at which a plastic transitions from solid to liquid, directly affecting injection molding of plastics machine settings.
Glass Transition Temperature (Tg)
The temperature above which amorphous polymers become flexible, important for determining suitable operating temperatures after injection molding of plastics.
Heat Deflection Temperature (HDT)
The temperature at which a plastic deforms under a specific load, crucial for applications exposed to heat after injection molding of plastics.
Chemical Resistance
Resistance to chemicals, solvents, and environmental factors varies widely among plastics, making it a key consideration in material selection for injection molding of plastics. This property determines how a plastic will perform when exposed to:
| Plastic Type | Acids | Bases | Solvents | Water/Moisture |
|---|---|---|---|---|
| Polyethylene (PE) | Excellent | Excellent | Moderate | Excellent |
| Polypropylene (PP) | Excellent | Excellent | Moderate | Excellent |
| Polyvinyl Chloride (PVC) | Moderate | Poor | Poor | Excellent |
| Nylon (PA) | Poor | Moderate | Excellent | Moderate |
| Polycarbonate (PC) | Poor | Poor | Moderate | Excellent |
This chemical resistance data helps engineers select appropriate materials for specific injection molding of plastics applications where exposure to various substances is expected.
Plastic Classification by Structure
Plastics are categorized based on their molecular structure, which significantly influences their behavior in injection molding of plastics processes:
Thermoplastics
Polymers that can be melted and reshaped multiple times when heated. This characteristic makes them ideal for injection molding of plastics due to their recyclability and processability.
Examples: Polyethylene (PE), Polypropylene (PP), Polystyrene (PS), Polyvinyl Chloride (PVC), Nylon (PA), Polycarbonate (PC)
Thermosetting Plastics
Polymers that undergo a chemical change during curing and cannot be remelted or reshaped. While less common in injection molding of plastics, they offer superior heat resistance.
Examples: Epoxies, Phenolics, Polyurethanes, Silicones, Melamine formaldehyde
Engineering plastics are high-performance materials designed for demanding applications. Their unique properties make them essential in the injection molding of plastics for industries ranging from automotive to electronics.

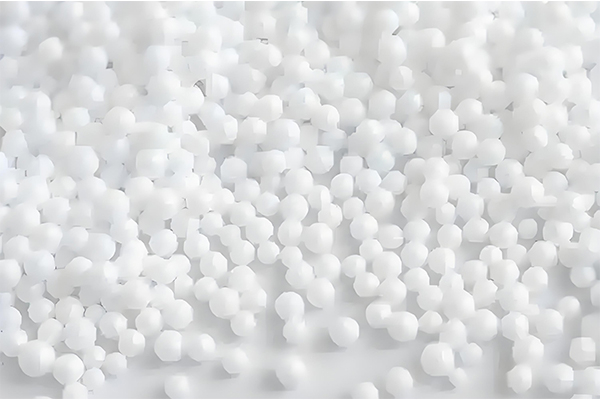

Polyethylene (PE)
Properties
Polyethylene is the most widely used plastic in injection molding of plastics due to its versatility, low cost, and excellent chemical resistance. It offers good impact strength, flexibility, and is easy to process.
Processing in Injection Molding
- Melt temperature: 180-260°C
- Mold temperature: 10-40°C
- Injection pressure: 500-1000 bar
- High flowability makes it suitable for complex shapes in injection molding of plastics
- Rapid cooling recommended to maintain dimensional stability
Common Applications

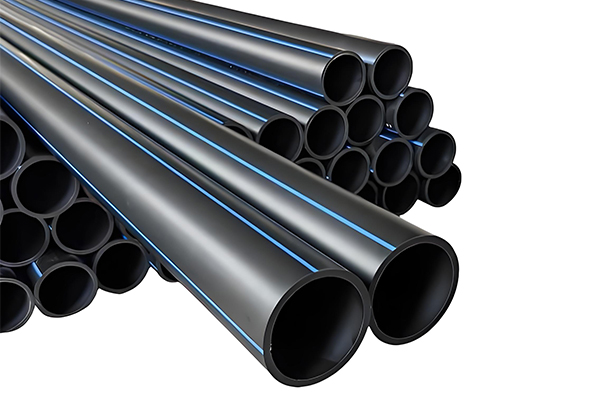

Packaging containers, toys, automotive parts, household goods, pipes, and fittings. The injection molding of plastics using PE is particularly common in food contact applications due to its non-toxic nature.
Polypropylene (PP)
Properties
Polypropylene offers excellent chemical resistance, high stiffness, and good fatigue resistance, making it a popular choice in injection molding of plastics. It has a higher melting point than PE and offers better tensile strength.
Processing in Injection Molding
- Melt temperature: 200-270°C
- Mold temperature: 20-60°C
- Injection pressure: 600-1500 bar
- Prone to warpage; requires proper cooling in injection molding of plastics
- Higher shrinkage rate (1-2.5%) than many other plastics
Common Applications
Automotive components, food containers, medical devices, caps and closures, toys, and industrial parts. The injection molding of plastics using PP is favored for its balance of properties and cost-effectiveness.

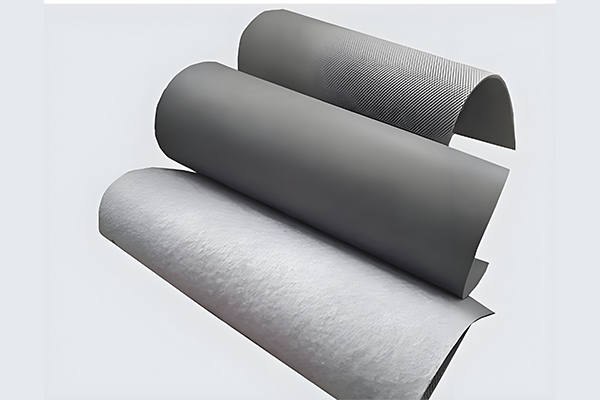

Polyvinyl Chloride (PVC)
Properties
PVC is available in rigid and flexible forms, offering good chemical resistance, high strength, and flame retardancy. Its versatility makes it suitable for various injection molding of plastics applications, though it requires careful processing due to potential decomposition.
Processing in Injection Molding
- Melt temperature: 160-200°C (must avoid exceeding 200°C)
- Mold temperature: 30-60°C
- Injection pressure: 800-1500 bar
- Requires stabilizers to prevent degradation during injection molding of plastics
- Low thermal stability necessitates careful temperature control
Common Applications
Pipes and fittings, window profiles, medical devices, automotive parts, and consumer goods. The injection molding of plastics using PVC is particularly valued for its balance of strength, chemical resistance, and cost.

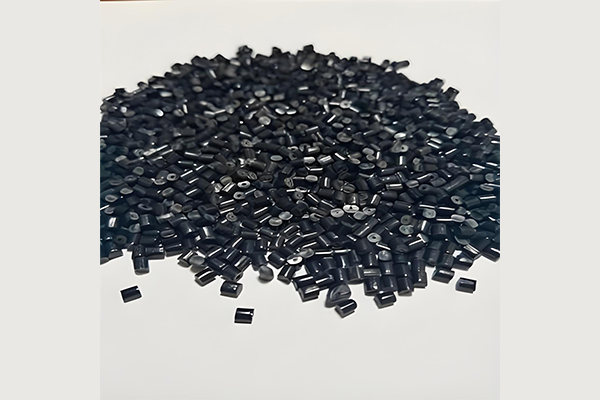

Nylon (Polyamide, PA)
Properties
Nylon offers excellent mechanical properties, including high tensile strength, good impact resistance, and low friction. It is widely used in injection molding of plastics for engineering applications requiring durability and wear resistance.
Processing in Injection Molding
- Melt temperature: 230-300°C
- Mold temperature: 60-120°C
- Injection pressure: 800-1600 bar
- High moisture absorption requires pre-drying before injection molding of plastics
- Good flow properties allow for thin-walled parts
Common Applications
Gears, bearings, bushings, automotive parts, electrical connectors, and consumer goods. The injection molding of plastics using nylon is particularly valued for parts requiring strength and wear resistance in mechanical applications.

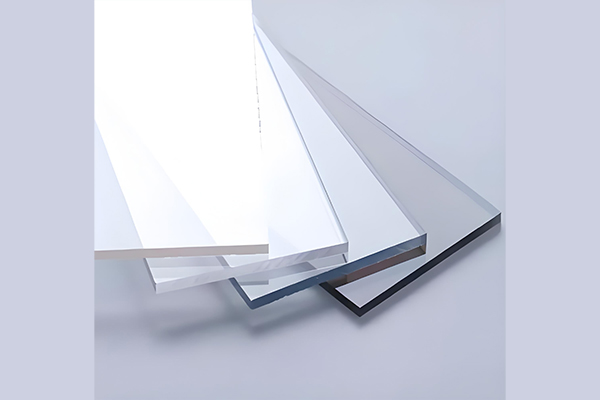

Polycarbonate (PC)
Properties
Polycarbonate is known for its exceptional impact resistance, optical clarity, and heat resistance. These properties make it a premium choice in injection molding of plastics for applications requiring transparency and durability.
Processing in Injection Molding
- Melt temperature: 260-320°C
- Mold temperature: 80-120°C
- Injection pressure: 800-1500 bar
- Sensitive to moisture; requires thorough drying before injection molding of plastics
- Prone to hydrolysis if moisture is present during processing
Common Applications
Safety glasses, automotive headlights, electronic housings, medical devices, and CD/DVDs. The injection molding of plastics using PC is favored for applications requiring both transparency and impact resistance.

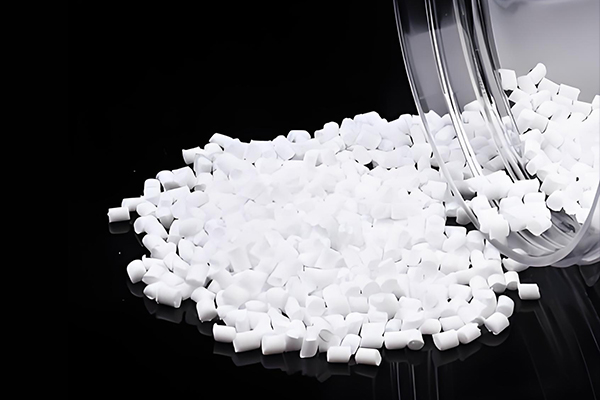

Polyoxymethylene (POM)
Properties
POM, also known as acetal, offers excellent dimensional stability, low friction, and high fatigue resistance. It is widely used in injection molding of plastics for precision mechanical components that require consistent performance.
Processing in Injection Molding
- Melt temperature: 180-230°C
- Mold temperature: 80-120°C
- Injection pressure: 700-1400 bar
- Moderate moisture absorption requires drying before injection molding of plastics
- Low shrinkage and excellent dimensional stability
Common Applications
Gears, bearings, bushings, zippers, automotive components, and precision mechanical parts. The injection molding of plastics using POM is particularly valued for its combination of strength, toughness, and low friction properties.
Injection Molding Processing Parameters Comparison
| Plastic Type | Melt Temp (°C) | Mold Temp (°C) | Injection Pressure (bar) | Shrinkage (%) | Drying Required |
|---|---|---|---|---|---|
| Polyethylene (PE) | 180-260 | 10-40 | 500-1000 | 1.5-5.0 | No |
| Polypropylene (PP) | 200-270 | 20-60 | 600-1500 | 1.0-2.5 | No |
| PVC | 160-200 | 30-60 | 800-1500 | 0.5-1.5 | No |
| Nylon (PA) | 230-300 | 60-120 | 800-1600 | 0.8-2.5 | Yes |
| Polycarbonate (PC) | 260-320 | 80-120 | 800-1500 | 0.5-0.7 | Yes |
| POM | 180-230 | 80-120 | 700-1400 | 1.5-3.5 | Yes |
This table provides general guidelines for injection molding of plastics parameters. Actual processing conditions may vary based on specific material grades, part design, and equipment capabilities.
Proper identification of plastics is crucial in injection molding of plastics to ensure correct processing parameters and material selection. While advanced analytical techniques exist, several simple methods can help identify common plastics used in manufacturing.
Visual Inspection
The first step in plastic identification is visual inspection, which can provide valuable clues about the material's potential type before any further testing. This initial assessment is often sufficient for experienced professionals in injection molding of plastics to make a preliminary identification.
- Color: Natural color can indicate material type (e.g., HDPE is milky white, PP is translucent, PC is completely clear).
- Transparency: Degree of clarity ranges from opaque (PVC, ABS) to completely transparent (PC, PMMA).
- Surface Finish: Textures, gloss levels, and surface patterns can provide identification clues.
- Flexibility: Degree of flexibility when bent (PE and PP are more flexible than PS or PC).
- Printed Marks: Resin identification codes (RIC) or manufacturer markings often indicate plastic type.
Resin Identification Codes (RIC)
PETE/PET
HDPE
PVC
LDPE
PP
PS
OTHER (PC, ABS, Nylon, etc.)
These codes, found on many plastic products, help identify materials for recycling and are useful in injection molding of plastics applications.
Burn Test
The burn test is one of the most effective methods for plastic identification in injection molding of plastics facilities. By observing how a plastic behaves when burned, you can gather valuable information about its composition.
Safety precautions: Always perform burn tests in a well-ventilated area, have a fire extinguisher nearby, and use appropriate protective equipment.
Key Observations:
- Ignition: How easily the plastic catches fire
- Flame Color: Characteristics of the flame (color, smoke, etc.)
- Self-Extinguishing: Whether the plastic stops burning when the flame is removed
- Odor: The smell produced during combustion
- Ash Residue: Color and characteristics of remaining ash
| Plastic | Flame | Self-Extinguishing | Odor |
|---|---|---|---|
| PE | Blue with yellow tip, drips | No | Paraffin-like |
| PP | Blue with yellow tip, drips | No | Sweet, gasoline-like |
| PVC | Yellow, green edge, heavy smoke | Yes | Hydrochloric acid (irritating) |
| PS | Bright orange, sooty | No | Sweet, aromatic |
| PA (Nylon) | Blue, melts and drips | Yes | Celery or burning hair |
| PC | Yellow, sputters | Yes | Sweet, phenolic |
Burn test results are valuable for quick identification in injection molding of plastics operations when material documentation is unavailable.
Density Test
The density test involves determining whether a plastic sinks or floats in liquids of known density. This simple method is particularly useful in injection molding of plastics facilities for initial material sorting.
Pure water (density 1.0 g/cm³) is commonly used as a reference. Plastics with density less than 1.0 g/cm³ will float, while those with higher density will sink. For more precise identification, liquids of different densities can be used.
Procedure:
- Obtain a small sample of the plastic (1-2 grams)
- Fill a container with distilled water
- Place the plastic sample in the water
- Observe whether it floats or sinks
- For more precise testing, use saltwater solutions of known densities
Density Values of Common Plastics
Interpretation Guide:
- Floats in water (density < 1.0 g/cm³)
- Sinks in water (density > 1.0 g/cm³)
This information helps in quick sorting and identification during injection molding of plastics material handling.
Other Identification Methods
Heat Test
Applying controlled heat to a plastic sample can help identify whether it is thermoplastic (melts when heated) or thermosetting (does not melt). This distinction is fundamental in injection molding of plastics since only thermoplastics are typically used.
Thermoplastics will soften and eventually melt, while thermosetting plastics will char or burn without melting when exposed to sufficient heat.
Solvent Test
Exposing plastics to various solvents can help identify them based on their chemical resistance properties. Different plastics react uniquely to specific solvents.
For example, polystyrene dissolves in acetone, while polyethylene is resistant to most solvents. This test is particularly useful in injection molding of plastics quality control.
Electrical Test
Measuring a plastic's electrical conductivity can help narrow down its type, as certain plastics have characteristic electrical properties.
Most plastics used in injection molding of plastics are insulators, but some can be formulated to be conductive. For example, polyacetal has lower dielectric loss than many other plastics.
Advanced Analytical Methods
For precise identification in critical injection molding of plastics applications, advanced methods may be necessary:
- Fourier Transform Infrared Spectroscopy (FTIR)
- Thermogravimetric Analysis (TGA)
- Differential Scanning Calorimetry (DSC)
- Pyrolysis Gas Chromatography-Mass Spectrometry (Py-GC-MS)
Plastic Identification Flowchart
This flowchart provides a systematic approach to plastic identification, valuable in injection molding of plastics operations for material verification and quality control.
Conclusion
Understanding the properties, processing requirements, and identification methods for plastics is essential in the injection molding of plastics industry. Proper material selection directly impacts product performance, manufacturing efficiency, and cost-effectiveness.
By leveraging the information provided in this guide, professionals in injection molding of plastics can make informed decisions about material selection, optimize processing parameters, and ensure product quality through proper material identification and verification.
