The Comprehensive Guide to Injection Molding
A detailed exploration of the techniques, processes, and future of one of manufacturing's most versatile methods
Injection Molding Introduction
Injection molding is a manufacturing process that produces parts by injecting molten material into a mold. This highly efficient injection molding method is widely used across industries due to its ability to create complex shapes with high precision and repeatability. The principles of injection molding have remained consistent since its inception, but technological advancements have significantly improved its capabilities, making it indispensable in modern manufacturing.
The history of injection molding dates back to the 19th century. The first patent for an injection molding machine was granted to John Wesley Hyatt in 1872, who developed the process to create billiard balls as a substitute for ivory. Early machines were hand-cranked and limited in capability, but they established the fundamental concept of melting material and injecting it into a mold cavity.
Today, injection molding has evolved into a sophisticated process capable of producing millions of identical parts with tight tolerances. From small components like medical syringes to large automotive panels, injection molding offers unparalleled versatility. The process is particularly valued for its efficiency in high-volume production, where the cost per unit decreases significantly as production quantities increase.
Key Characteristics of Injection Molding
- High precision and repeatability in part production
- Ability to produce complex geometries with intricate details
- Compatibility with a wide range of thermoplastic and thermosetting materials
- Efficient high-volume production capabilities
- Minimal material waste compared to other manufacturing processes
- Capability for insert molding and multi-material molding

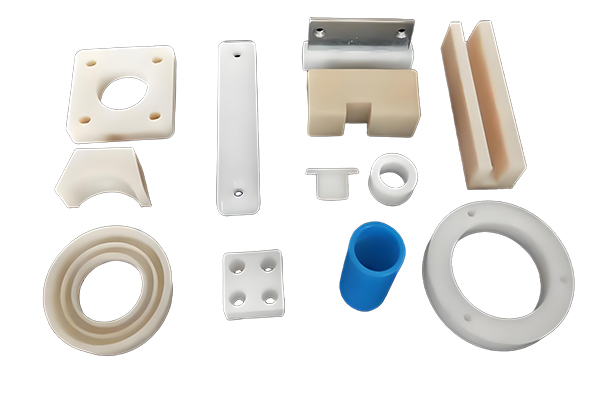

One of the primary advantages of injection molding is its material versatility. The process can utilize hundreds of different polymers, each offering unique properties to meet specific application requirements. Common materials include polyethylene (PE), polypropylene (PP), acrylonitrile butadiene styrene (ABS), polyvinyl chloride (PVC), and polycarbonate (PC). Additives can be incorporated into these materials to enhance properties such as UV resistance, flame retardancy, conductivity, and strength, making injection molding suitable for diverse industries.
The automotive industry is one of the largest users of injection molding, utilizing the process to produce everything from interior components and dashboards to under-the-hood parts that must withstand extreme temperatures. The medical industry relies on injection molding for sterile, precise components like syringes, IV connectors, and surgical instruments, often using materials approved by regulatory bodies for biocompatibility.
Consumer goods represent another major application area for injection molding, with products ranging from toys and household appliances to electronic device casings. The packaging industry also extensively uses injection molding to create caps, closures, and containers with precise fits and specialized features.
As manufacturing continues to evolve, injection molding remains at the forefront due to its adaptability and efficiency. The process continues to benefit from advancements in materials science, machine technology, and computer-aided design, ensuring that injection molding will remain a cornerstone of modern manufacturing for years to come.
Main Injection Molding Processes
The injection molding process consists of several interconnected stages, each critical to producing high-quality parts. While the basic concept remains consistent—melting plastic and injecting it into a mold—the modern approach relies on advancing the injection molding process itself: it integrates sophisticated equipment and precise controls to ensure optimal results. Understanding each step in the process is essential for achieving consistent quality, minimizing waste, and maximizing efficiency.

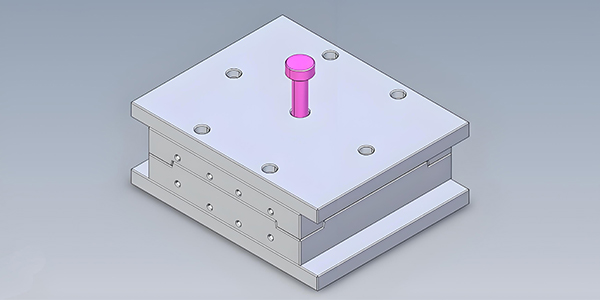

Mold Design and Fabrication

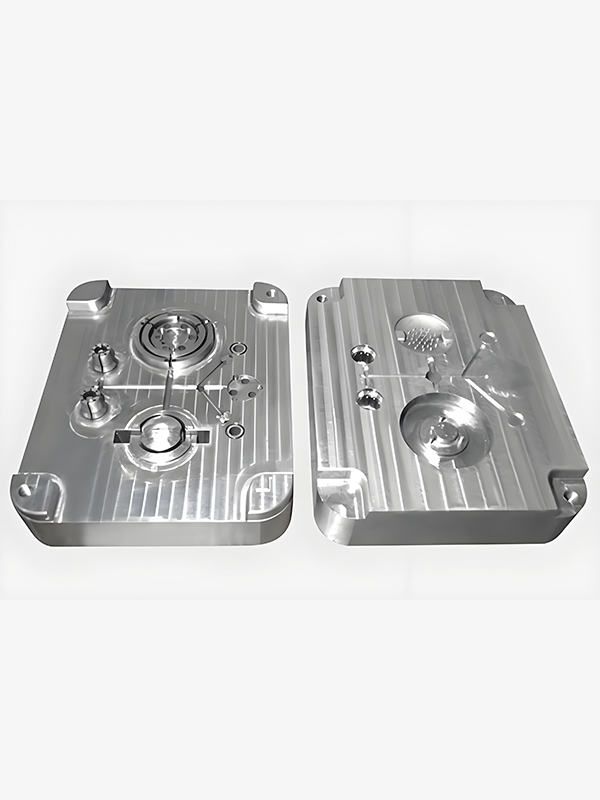

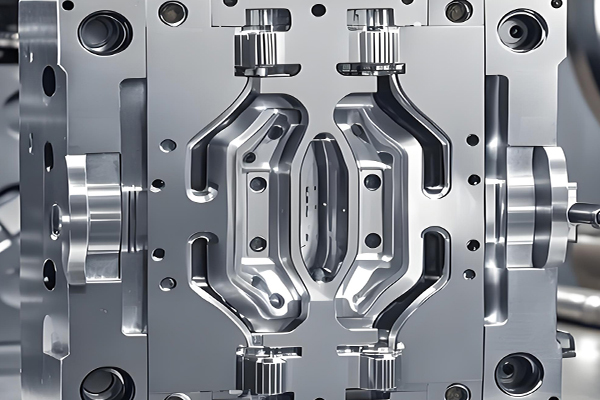

The foundation of any successful injection molding project is the mold itself, often referred to as a tool. Mold design is a specialized engineering discipline that requires careful consideration of part geometry, material properties, cooling requirements, and production volume.
Molds are typically constructed from high-grade tool steel, though aluminum may be used for lower volume production due to its faster fabrication time and lower cost. The mold consists of two primary halves: the cavity and the core. When clamped together, these halves form the shape of the desired part.
Key considerations in mold design include:
- Parting line placement to ensure proper mold separation
- Draft angles to facilitate easy part ejection
- Gate design and location for optimal material flow
- Cooling channel layout to ensure uniform cooling
- Ejection system design to prevent part damage
- Venting to allow air escape during injection
Material Selection and Preparation
Material selection is critical in injection molding, as it directly impacts part performance, processing parameters, and cost. The majority of injection molding processes use thermoplastic polymers, which can be melted and solidified repeatedly without significant degradation.
Before processing, plastic materials typically arrive in pellet form and may require drying to remove moisture, which can cause defects like bubbles or splay marks in the final part. Desiccant dryers or hot air dryers are commonly used for this purpose, with drying times and temperatures varying by material.
Colorants, fillers, or additives may be mixed with the base resin either during manufacturing (compounding) or just before processing (masterbatch). This ensures consistent color and property distribution throughout the material.
Material handling systems, including hoppers, conveyors, and loaders, transport the prepared material to the injection molding machine, ensuring a continuous supply during production runs.
Plasticizing and Injection

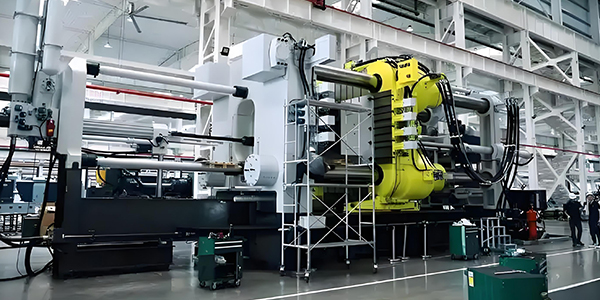

The plasticizing stage, often called melting, is where the solid polymer pellets are converted into a molten state suitable for injection. This occurs in the barrel of the injection molding machine, where a rotating screw conveys, compresses, and heats the material.
As the screw rotates, it generates friction and shear heat, which, combined with external barrel heaters, melts the plastic. The molten material accumulates at the front of the barrel (in the shot chamber) until a sufficient volume (shot size) is collected for the next injection cycle.
During injection, the screw moves forward, forcing the molten plastic through the nozzle and into the mold cavity. Injection speed and pressure are carefully controlled to ensure proper filling without causing mold damage or part defects. Modern injection molding machines offer precise control over these parameters, often with closed-loop feedback systems to maintain consistency.
The injection phase is critical in determining part quality, as improper parameters can lead to issues such as short shots (incomplete filling), flash (excess material), or internal stresses.
Packing and Holding
Once the mold cavity is filled, the packing phase begins. During this stage, additional material is injected into the mold to compensate for volumetric shrinkage that occurs as the plastic cools and solidifies.
Packing pressure is typically lower than injection pressure but is maintained for a specific duration to ensure the mold remains full as the material begins to harden. Proper packing is essential for achieving dimensional stability, reducing sink marks, and ensuring consistent part weight.
The holding pressure and time are critical parameters that vary depending on the material, part thickness, and geometry. Thermoplastics with higher shrinkage rates (like polyethylene) require longer holding times and higher pressures than materials with lower shrinkage rates (like polystyrene).
As the gate (the opening through which material enters the cavity) begins to freeze, the holding pressure is gradually reduced, marking the transition to the cooling phase.
Cooling
Cooling is one of the most time-consuming stages of the injection molding process, often accounting for 50-80% of the total cycle time. Efficient cooling is therefore critical for maximizing production efficiency.
Cooling occurs as heat is transferred from the molten plastic to the mold, which is kept at a controlled temperature by a network of cooling channels. These channels circulate water or oil to remove heat from the mold surface.
The design of the cooling system significantly impacts cooling rate and uniformity. Ideally, cooling channels should be evenly distributed and positioned close to the mold cavity, especially in areas with thick wall sections where cooling takes longer.
The cooling time is determined by the time required for the part to solidify sufficiently to maintain its shape during ejection. Factors affecting cooling time include:
- Part thickness (thicker sections require longer cooling)
- Material thermal conductivity and specific heat
- Mold temperature
- Coolant temperature and flow rate
Ejection and Part Removal
Once the part has sufficiently cooled and solidified, the mold opens, and the ejection system pushes the part out of the mold cavity or core. The ejection system typically consists of ejector pins, sleeves, or stripper plates, depending on part geometry.
Ejection force must be carefully balanced to remove the part without causing damage while minimizing ejector marks on the visible surfaces. Draft angles (tapered surfaces) on the part facilitate easier ejection by reducing friction between the part and mold.
In automated production, robotic arms or pick-and-place systems often remove parts from the mold, placing them on conveyors for further processing or inspection. This automation reduces cycle time and minimizes human intervention.
After ejection, the mold closes, and the cycle repeats. The total cycle time—from mold closing to part ejection—varies depending on part size, thickness, and material, ranging from a few seconds for small parts to several minutes for large or thick-walled components.
Post-Processing and Quality Control
After ejection, parts may require post-processing to meet final specifications. Common post-processing steps include trimming excess material (flash or runners), degating (removing the connection between part and runner), and surface treatments such as painting, plating, or printing.
Quality control is an integral part of the injection molding process, with inspections occurring at various stages to ensure compliance with specifications. Dimensional checks using calipers, micrometers, or coordinate measuring machines (CMM) verify part dimensions against design requirements.
Visual inspections check for surface defects such as scratches, sink marks, or flow lines. Functional testing may also be performed to ensure parts meet performance requirements under operating conditions.
Statistical process control (SPC) is often employed in high-volume production to monitor critical parameters and detect variations before they result in defective parts. This proactive approach to quality ensures consistent production and minimizes waste.
Injection Molding Development Trends
The injection molding industry continues to evolve rapidly, driven by advancements in technology, changing material science, and growing demands for sustainability and efficiency—trends that directly impact injection molding manufacturers. These shifts are reshaping how injection molding is performed, expanding its capabilities, and opening new applications for the process. Understanding these developments is essential for manufacturers looking to remain competitive in an increasingly demanding global market.
Industry 4.0 and Smart Manufacturing
The integration of digital technologies into injection molding, often referred to as Industry 4.0, is revolutionizing production processes. Smart injection molding machines equipped with sensors and connectivity capabilities collect real-time data on process parameters, machine performance, and part quality.
This data is analyzed using advanced algorithms and machine learning to optimize process parameters, predict maintenance needs, and minimize defects. Digital twins—virtual replicas of physical machines and processes—enable manufacturers to simulate production runs, test changes, and troubleshoot issues without disrupting actual production.
The result is greater process stability, reduced downtime, improved quality, and increased overall equipment effectiveness (OEE). As connectivity and data analytics continue to improve, smart manufacturing will become increasingly prevalent in injection molding facilities worldwide.
Sustainable Materials and Processes
Environmental concerns are driving significant changes in injection molding materials and practices. There is growing demand for biodegradable, compostable, and recycled materials that reduce the environmental impact of plastic products.
Manufacturers are increasingly incorporating post-consumer recycled (PCR) content into their injection molding processes, with some achieving up to 100% recycled material in certain applications. Chemical recycling technologies are being developed to break down difficult-to-recycle plastics into feedstocks suitable for injection molding.
Energy efficiency is also a major focus, with newer injection molding machines designed to consume significantly less energy than older models. Process optimizations, such as reducing cycle times and implementing more efficient heating and cooling systems, further contribute to sustainability efforts in injection molding.

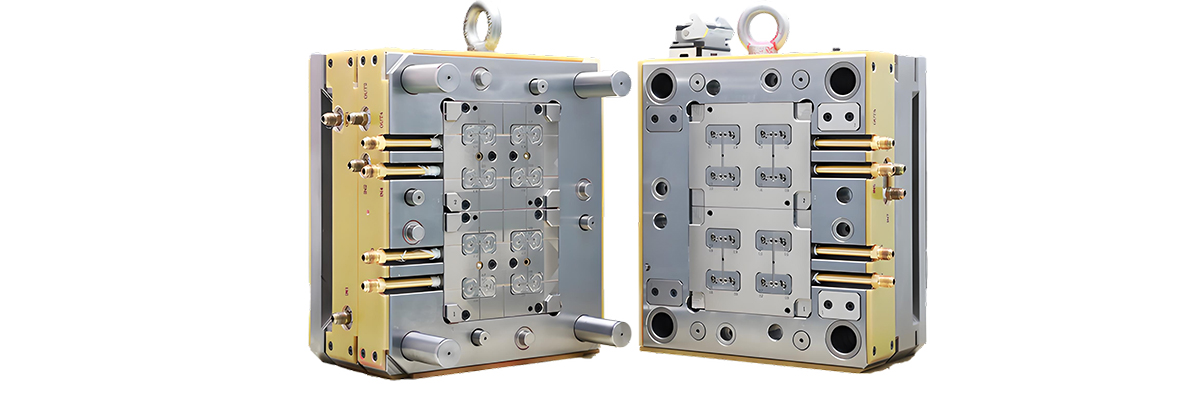

Advanced Mold Technologies
Mold making is undergoing significant innovation, with new technologies enabling more complex, efficient, and cost-effective tooling. 3D printing, or additive manufacturing, is increasingly used to produce mold inserts, especially for low-volume production or prototyping.
Conformal cooling—where cooling channels follow the shape of the part—improves cooling efficiency and reduces cycle times. This technology, often enabled by 3D printing, allows for more uniform cooling and better part quality.
Self-healing molds with sacrificial layers, adaptive molds that can produce multiple part variations, and intelligent molds with built-in sensors are among the cutting-edge developments transforming mold technology in injection molding.
Multi-Material and Advanced Processes
Injection molding is becoming increasingly versatile, with advancements in multi-material and multi-color molding enabling more complex part integration. Technologies like overmolding, insert molding, and two-shot molding allow manufacturers to combine different materials or colors in a single production process.
These processes eliminate the need for assembly of multiple components, reducing production time and costs while improving part integrity. Overmolding, for example, can create a strong bond between a rigid plastic substrate and a soft elastomer, producing parts with both structural strength and grip.
Micro-injection molding, capable of producing parts with dimensions in the micrometer range, is opening new applications in medical devices, electronics, and micro-optics. These advanced processes are expanding the capabilities of injection molding beyond traditional limits.
Increased Automation and Robotics
Automation is playing an increasingly important role in injection molding, driven by the need for higher productivity, improved quality, and reduced labor costs. Modern injection molding cells often incorporate robotic systems for tasks such as part removal, inspection, assembly, and packaging.
Collaborative robots (cobots) are being integrated into injection molding processes, working alongside human operators to perform repetitive or ergonomically challenging tasks. These systems can be easily programmed and reconfigured for different production runs, offering flexibility in small to medium volume production.
Automated guided vehicles (AGVs) are used to transport molds and materials between workstations, reducing manual handling and improving workflow efficiency. As artificial intelligence and machine vision technologies advance, the capabilities of automated systems in injection molding will continue to expand.
Digital Design and Simulation
Computer-aided design (CAD) and computer-aided engineering (CAE) tools are transforming how injection molded parts and processes are developed. Advanced simulation software allows engineers to analyze mold flow, cooling, warpage, and other critical factors before a physical mold is ever built.
These simulations identify potential issues such as air traps, weld lines, or uneven cooling, enabling design modifications that improve part quality and reduce production problems. Virtual prototyping reduces the need for physical prototypes, shortening development cycles and reducing costs.
Generative design, where algorithms create optimized part geometries based on performance requirements, is producing injection molded parts that are lighter, stronger, and more efficient than those designed using traditional methods. As these digital tools continue to improve, they will play an increasingly central role in injection molding development processes.
The Future of Injection Molding
Looking ahead, injection molding will continue to evolve as a key manufacturing process, adapting to new materials, technologies, and market demands. The integration of artificial intelligence will enable more autonomous process control, with machines making real-time adjustments to optimize quality and efficiency.
Sustainable practices will become increasingly important, with closed-loop recycling systems allowing manufacturers to reuse production waste and end-of-life products as raw materials for new injection molding processes. This circular economy approach will reduce the environmental impact of plastic manufacturing while creating economic benefits.
Injection molding will also play a critical role in emerging technologies such as electric vehicles, wearable devices, and advanced medical technologies, where its ability to produce complex, high-precision parts from specialized materials will be invaluable. As these trends converge, injection molding will remain a vital and innovative manufacturing process for decades to come.
